Original price was: ₹ 76,800.00.₹ 72,990.00Current price is: ₹ 72,990.00.
Key Features
– Sine wave oscillators, ring modulators, through-zero FM, and saturating mixers give Labyrinth an unconventional yet classic Moog sound
– A diode-transistor hybrid wavefolder that sounds surprisingly smooth
– A state-variable filter provides a new twist on the Moog sound, morphing from lowpass to bandpass
– Creative patching possibilities for performance alongside other instruments
– An infinite spiral of percussive or melodic sequences that bloom over time

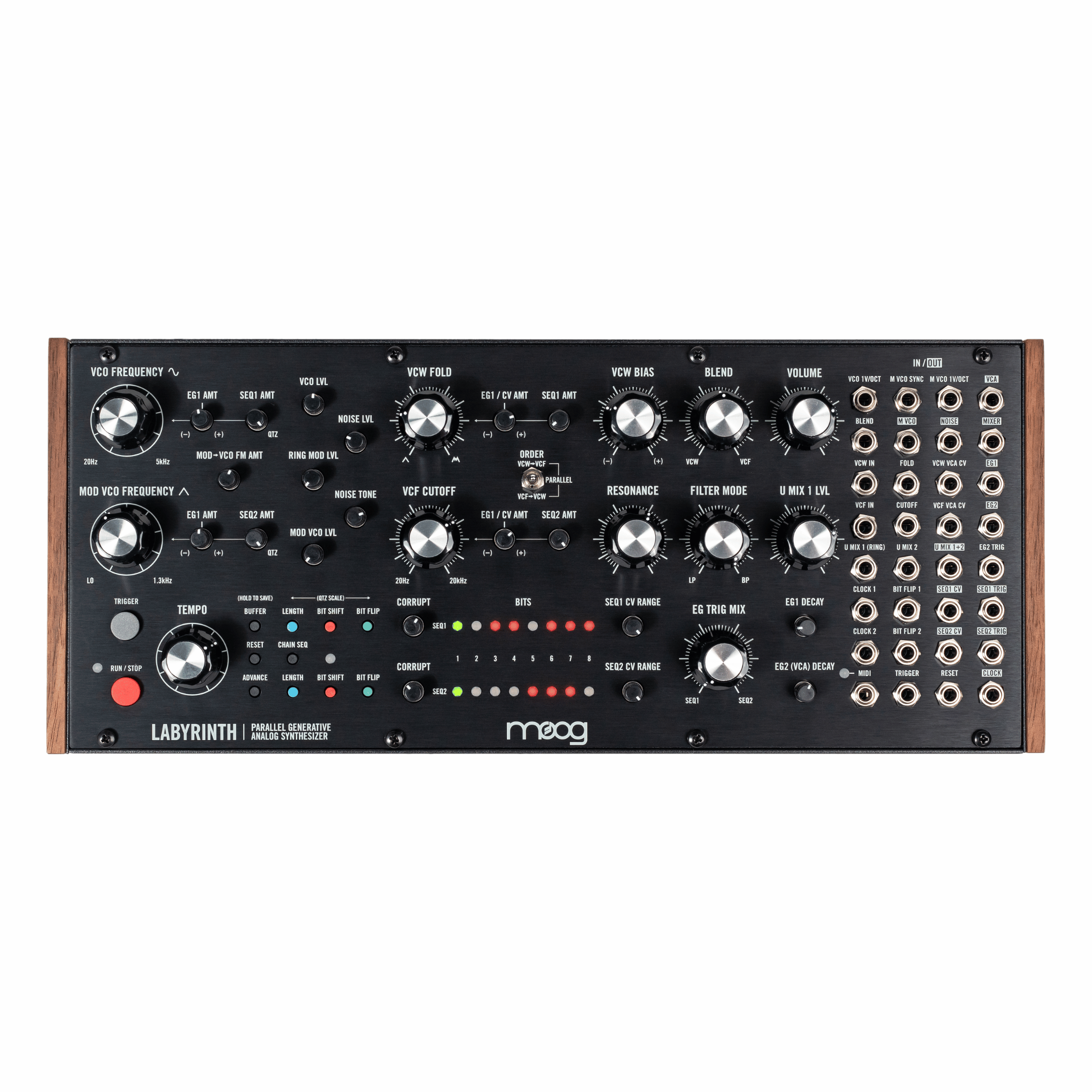

Labyrinth, a semi-modular instrument and idea machine, discovers patterns, layers, and textures both familiar and unheard. Two generative sequencers bring to life sounds that bloom over time, letting you control their evolution and scale, then play them off of each other for striking polymetric melodies. With parallel analog signal paths, this unique instrument shines when adding color to the static backdrop of a drum pattern or bassline. Fully capable of standing on its own, or adding depth to your existing rack, it’s equally at home in a live set or at the center of a humble bedroom studio. Labyrinth is the lightning in a bottle that drives a studio session deeper into undiscovered creative caverns.
The beating heart of Labyrinth is a robust dual sequencer, which uses chance operations to construct two unique eight-step paths which twist and curve around each other, forming a mesmerizing path of sound. With a comprehensive patch bay, Labyrinth can be synced via analog clock or MIDI while processing, directing, and being influenced by other kit.
Tune your instruments together and let Labyrinth improvise alongside in key while you play Matriarch. Patch Labyrinth and Spectravox together for animated spectral movement. Combine Labyrinth with Mavis in a 104HP rack for expanded modularity. These are just a handful of many playful setups where Labyrinth fits. Whichever path you choose, have Labyrinth guide you.
LABYRINTH SPECS
ANALOG SYNTHESIS ENGINE
SOURCES: VCO, MOD VCO, RING MOD, NOISE Generator
SIGNAL PROCESSORS: 1x Voltage-Controlled Wavefolder, 1x Voltage-Controlled State-Variable Filter, 2x Voltage-Controlled Amplifiers
MODULATORS: 2x Decay-only envelope generators
DUAL GENERATIVE SEQUENCER
2x 8-step Generative Digital Sequencers
PATCH BAY
JACKS: 32 x 3.5mm
INPUTS: 20 Input Jacks
OUTPUTS: 12 Output Jacks
REAR PANEL
AUDIO: 1⁄4” TRS Headphone or 1⁄4” TS Instrument
POWER: Power Supply connection
SECURITY: Kensington Lock slot
POWER SUPPLY (INCLUDED)
STYLE: Wall adapter; barrel connection; center-pin positive
INPUT: 100 – 240VAC; 50 Hz – 60 Hz
OUTPUT: +12VDC; 1200mA
POWER CONSUMPTION
TYPICAL: 4.0 W
EURORACK SPECS
CURRENT DRAW: 290 mA (maximum) from +12VDC (10-pin header)
MOUNTING DIMS: 60HP (18mm Module Depth)
IN THE BOX
Labyrinth Semi-Modular Parallel Generative Analog Synthesizer
Power Supply
Patch Sheet Overlays
Patch Cables (5x 12″)
Registration Card
Quickstart Guide
Cheat Codes
Safety & Warranty Manual
WEIGHTS & DIMENSIONS
PRODUCT ONLY
Weight (lbs) 3.1 lbs
Weight (kg) 1.5 kg
Imperial (in) 12.84” W x 5.64” D x 4.2” H
Metric (cm) 32.61 W x 14.33 D x 10.67 H
PRODUCT IN BOX
Weight (lbs) 5.29 lbs
Weight (kg) 2.4 kg
Imperial (in) 14.16” W x 8.16” D x 6.6” H
Metric (cm) 35.97 W x 20.73 D x 16.76 H
Reviews
There are no reviews yet.
