PreSonus BlueTube DP V2

 27,200.00  24,500.00

  • A value-packed 2-channel preamp that lets you dial in a huge range of tone
  • XMAX Class A solid-state preamps give you clean and clear sound
  • Parallel 12AX7-driven tube preamps lets you blend in tube saturation to warm up your tone
  • Switchable 48V phantom power provides compatibility with any kind of microphone
  • Backlit VU meters with LED clip indicators make it easy to keep an eye on your levels
  • Rugged rackmountable 1/2U chassis is also perfect for tabletop use

Description

PreSonus’ popular Class A XMAX preamps are widely lauded for their clarity and transparency. Our tube preamps are beloved for their warm, smooth sound. With the Blue Tube DP V2 dual-path mic/instrument preamp, you get both types of high-quality sound in one unit.

No wonder the original BlueTube DP became a classic!

Now we’ve improved on the classic unit with the BlueTube DP V2. The solid-state path now feeds PreSonus’ top-of-the-line Class A XMAX™ mic preamplifier with 80 dB of variable gain—an upgrade from the original BlueTube DP’s solid-state stage.

The tube path features a 12AX7 tube that operates on voltages double that of other preamplifiers in its class, producing lots of headroom and big tone. We’ve done an assortment of other tweaks as well. The result: Our BlueTube DP V2 offers lower noise, more high-end clarity, and an even smoother tube sound than its predecessor.

The Essential Features—and More!

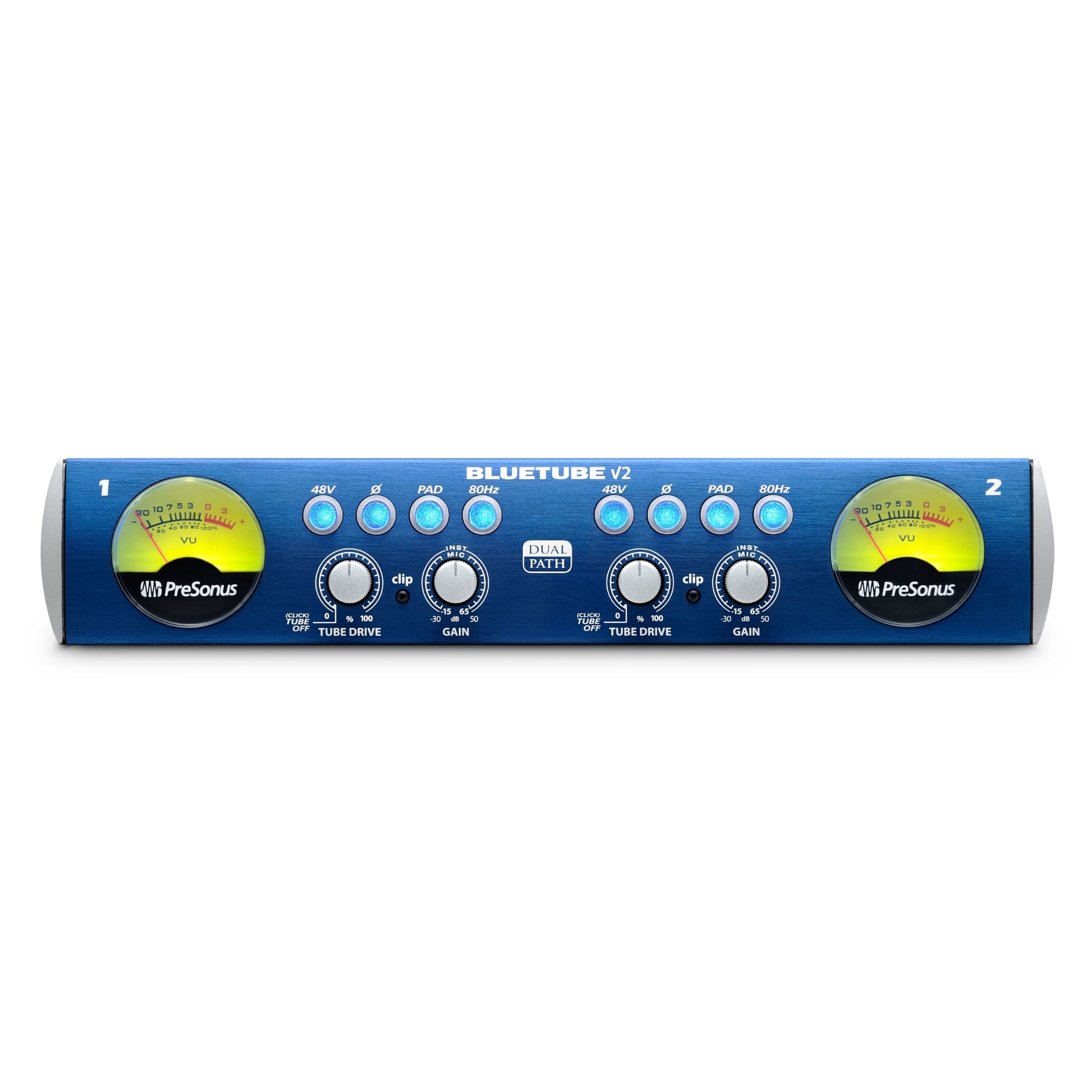

You still get all the secondary features you expect in a professional-grade preamp: 48V phantom power, an 80 Hz high-pass filter, -20 dB pad to control hot input signals, and a polarity-reverse switch. Each channel has an illuminated VU meter so you can visually monitor your input levels.

A Tube Drive control provides a wide range of sounds: when it’s clicked off, you’re using the solid-state preamp for quiet, transparent amplification; when it’s engaged, your signals flow through the tube preamp, and you can achieve anything from gentle warmth to edgy distortion.

Versatile and Affordable

With two combo mic/instrument inputs, the half-rackspace BlueTube DP V2 is a great choice for guitars and basses as well as for vocals. Singer-songwriters can run their vocal through one channel and their guitar through the other, feeding both to the P.A.—no guitar amp needed. It also serves as a DI box, thanks to balanced XLR and unbalanced ¼” outputs, and is housed in a new, rugged, 1/2U case.

Try the BlueTube DP V2 as a front end for a DAW, too; sure, your recording interface might already include preamps, but few of them give you both tube and solid-state operation.

We have also updated the preamp’s compact, rugged enclosure; it has more rounded edges and looks modern and sleek. It can be used as a desktop unit or it can be screw-mounted to a standard rack tray.

And despite the improvements, we deliver the BlueTube DP V2 for essentially the same price as the original BlueTube DP.

Features:
2 input channels, each with:

  • High-headroom Class A XMAX™ mic preamplifier with 80 dB gain range
  • 12AX7 vacuum tube gain stage
  • Tube Drive tube-saturation control
  • 48V phantom power
  • 80 Hz high-pass filter
  • -20 dB pad to reduce hot input levels
  • Polarity-reverse switch
  • Illuminated analog VU input-level meter

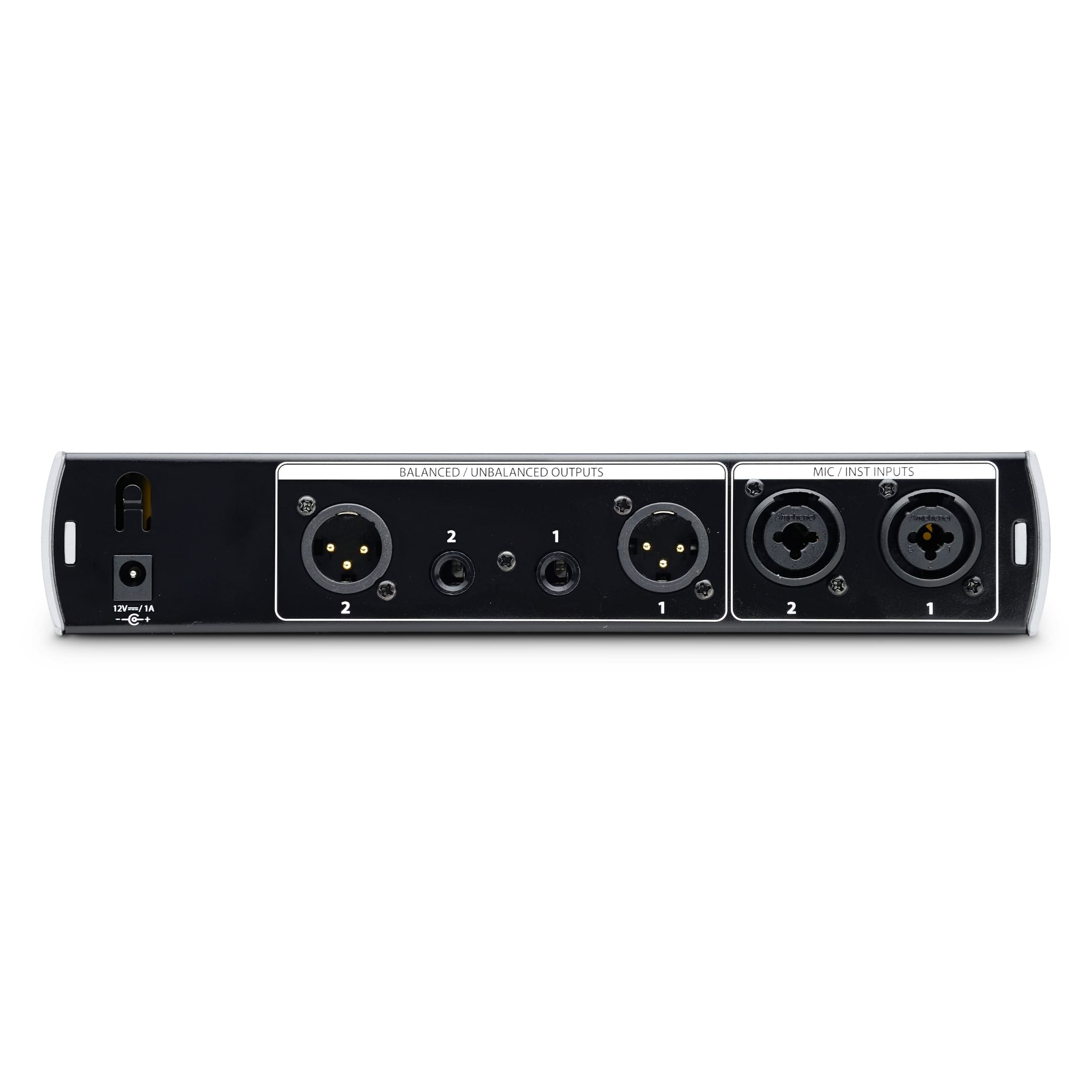

Input/Output

  • 2 balanced combo mic/unbalanced instrument inputs
  • 2 balanced XLR main (L/R) line outputs
  • 2 unbalanced ¼” main (L/R) line outputs



Physical

  • Compact 1/2U chassis
  • External 12 VDC, 1A power supply



Specifications:
Inputs

  • Connector Type Neutrik™ Combo
  • XLR Microphone Impedance 1.3 kΩ
  • 1⁄4” Instrument (Hi-Z) Impedance 1 MΩ
  • THD+N (unweighted), solid-state <0.005%
  • THD+N (unweighted), tube stage 0.01% to 30%
  • Signal-to-Noise >95 dB
  • Power-Supply Rejection >98 dB
  • Outputs
  • Connector Type XLR and ¼” TS
  • Impedance 51Ω



Power

  • External Adapter Type +12 VDC, 1A, center pin positive

Physical

  • Dimensions 1/2U rack-mountable (screw-mount to standard rack tray, not included)
  • Height 1.75” (44.45 mm)
  • Depth 5.5” (139.7 mm)
  • Width 9.5” (241.3 mm)
